QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
8 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC500 |
| Certification : | CE |
| Price : | Negotiation |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 5-8 days |

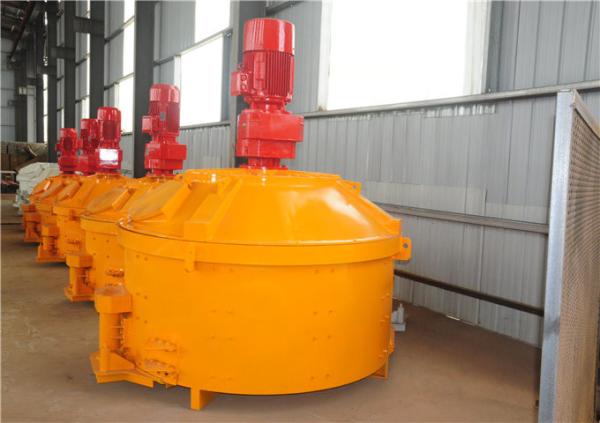

Protection Against Wear Planetary Cement Mixer Minimum Maintenancer
Features of Planetary mixer
Planetary mixer is a new type of high efficiency, stirring without
dead corner equipment; it has a unique form of stirring. Planet
drive the two stirring shaft turns around the material barrel, at
the same time, the stirring shaft is high-speed operation, so that
the material is strong shearing action, achieve full dispersion and
mixing effect. In addition to the equipment within the knife
scraping wall around the cylinder axis rotation, will be stuck on
the wall material scraping and then put them into mixing shear,
that make no residual material in the mixer and mixing effect is
more ideal. Cylinder with special seal structure and have the
pressure or vacuum stirring. Mixer has good deaeration effect, the
cylinder body can be designed to be heated or cooled according to
customers' needs. The cover is hydraulic lifting, convenient to
operate and clean and the cylinder body can move freely.
OPTIONS
The Skip Hopper
Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.
Weighing system
According to different requirements we can add aggregate weigher, cement weigher and water weigher.
Temperature and moisture sensor
To ensure concrete and prefabricated parts quality, sensors of temperature and moisture made in Bikotronic of German can be selected
Hydraulic Coupling
High Pressure Washing System
Control system
The control system can automatically control the process of dosing, mixing, and discharging.
Spare parts
Spare parts can be supplied at any time.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
