| Brand Name : | PERMIX |
| Model Number : | PMC150 |
| Certification : | CE |
| Supply Ability : | 5-10 units per month |
| Price : | Negotiation |
| Delivery Time : | 5-8 days |

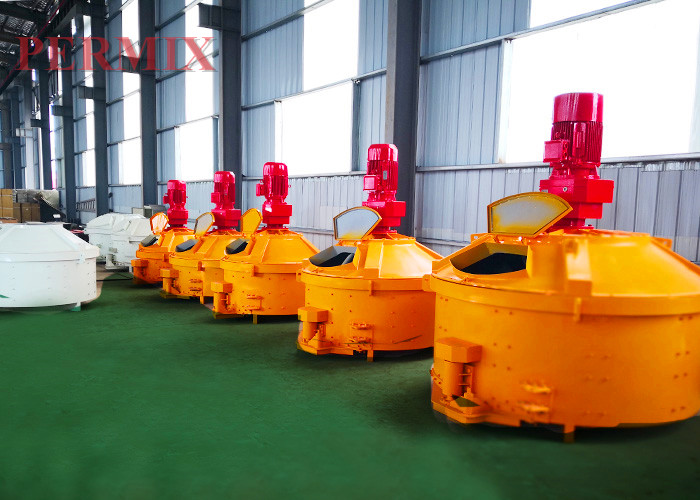

Low Energy Consumption Refractory Mixer MachineSmall Space Required
Operation Instruction
The instruction must be followed during operation:
1. Do not run over loaded;
2. Discharge material in the trough after an emergency stops. Start with load is forbidden;
3. After each shift, clean the trough, tools, check the tightness of nuts, and open and close the discharging door Several times to ensure it works smoothly,
Check the blades and tiles weekly and replace them if necessary;
4. The anti-wear parts made by our company must be used to avoid any damage to the machine;
5. Stay away from the discharging area to avoid any injury to workers.
Hydraulic System Maintenance Instruction
1. Check the bolts regularly and assure they are not loosening;
2. Strictly follow the instruction to check the condition of the pump before use if the hydraulic pump has stopped for a long time;
3. Replace the oil and oil filter after running the first 100hours, and then replace the oil or oil filter after 1000 hours running. From then on, replace oil or oil filter every 2000 hours.
4. When replace oil, clean oil tank and working components with new oil firstly then pour new oil
5. Switch off the auto-control loop while using manual hydraulic system. Turn on manual stop valve and pull switching handle on the manual pump to the utmost. Then pull the handle to open the discharge door. Pull the handle in reverse to close the discharge door;
Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) ceramic materials
(2) surfacing materials.
(3) highchrome alloy.
(4) stainless steel materials.
(5) wear - resistant alloy plates.
(6) polyurethane material.
(7) high wear resistant rubber and cast stone materials.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
