QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
8 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC750 |
| Certification : | CE |
| Price : | Negotiation |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 5-8 days |

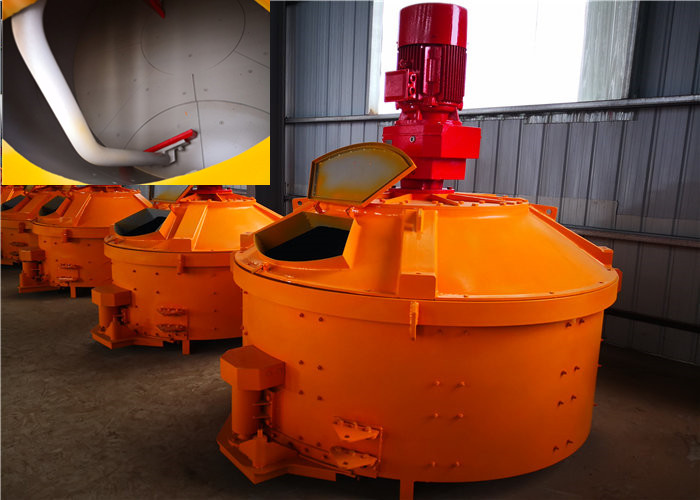

Replaceable Mixing Blades Vertical Shaft Concrete Mixer No Hidden Corners
The characteristics of the planetary mixer
The planetary mixer is a new type of high efficient mixed mixing equipment without dead point. It has a unique mixing form. When the planet frame rotates, the two stirring axes in the driving box revolve around the barrel, and the mixing shaft runs at a high speed, so that the material is subjected to a strong shearing effect and the effect of full dispersion and mixing is achieved. The shaving cutter in the external equipment rotates around the axis of the cylinder, scraping the material on the wall and participating in the mixed shear, so that there is no residual material in the wall, and the mixing effect is more ideal. The cylinder body uses a special sealing structure, which can be pressurized or vacuum stirred, and has good defoaming effect. The cylinder can be designed according to the needs of the customer. For heating or cooling, the cylinder cover is hydraulic lifting, convenient for operation and cleaning, and the barrel can move freely.
APPLICATION INDUSTRIES
1. Concrete
Precast concrete: various block bricks, sleepers, track slabs, metro tunnel segments, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2. Ceramics,
3. Pot Clay,
4. Glass Raw Material,
5. Refractories: Unshaped refractories, refractory bricks,
6. Casting materials: Sand mixing, casting coatings,
Others
The use of mixer
1. Before use, an empty test machine shall be used. Before the test machine, the firmness of all the connecting parts of the machine table shall be checked first, especially if the bearing part is loose during transportation, the main switch is closed, and the power supply is conducted. Air running test machine.
2. Empty test machine test. The mixer was put into production only when abnormal sounds, high temperature of bearing gears, and other undesirable phenomena were not found.
3. If abnormal vibrations or strange sounds are detected during use, stop the mixer and perform a thorough inspection.
4. The load should not be too large. It is generally measured by the load of the motor. The load current of the 380V motor when stirring the material should not exceed 6 amps. If it exceeds the load, the stirring capacity should be reduced immediately.
5. The management personnel must be familiar with the technical performance, internal structure, control structure, and use principle of the mixer. Do not leave the workplace during operation to prevent malfunctions and damage to mechanical parts, so as to ensure safe production.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and
scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
