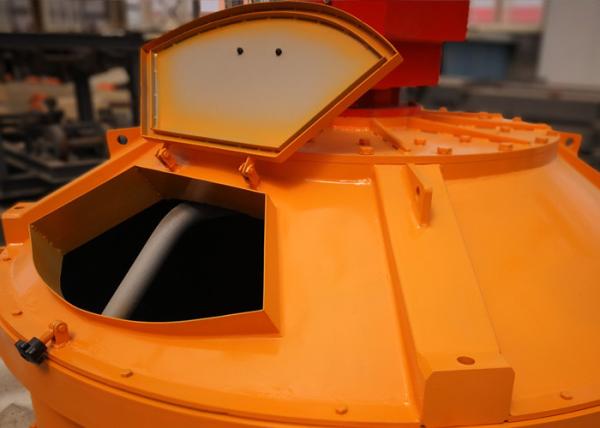

Environmental protection Counter Current Mixer 1-3 Unloading Doors
PMC50
Product advantage and description
In this mchine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge
through the pneumatic piston push rod.
Concrete mixer is advanced at home and abroad, the ideal model, and
has a high degree of automation, mixing of good quality, high
efficiency,
low energy consumption, low noise, easy operation, fast discharging, long service life of lining and blade, convenient maintenance. Applicable
to plasticity, ductility, and lightweight aggregate concrete and
various mortar mixing.
The performance characteristics of Mixer
1. Reasonable design and performance optimization of the whole
machine
2. Convenient use and maintenance;
3. Firm and reliable, life factory;
4. Good mixing quality and high efficiency
5. Convenient operation and fast discharging speed
6. Low energy consumption and low noise
Principle of Motion: Mixing with no hidden corners in the mixing
pan by installing mixing tools and scraper tools on a specially
designed drive system.
The mixing track as follows.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1250 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 160 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 | 1664* 1453* 1487 | 1670* 1460* 1620 | 1860* 1650* 1780 | 1870* 1870* 1855 | 2230* 2080* 1880 | 2580* 2340* 2195 | 2891* 2602* 2237 | 3058* 2756* 2395 | 3223* 2902* 2470 | 3625* 3230* 2695 | 3893* 3550* 2875 | 3893* 3550* 3085 | 4594* 4150* 3634 |
|
|
