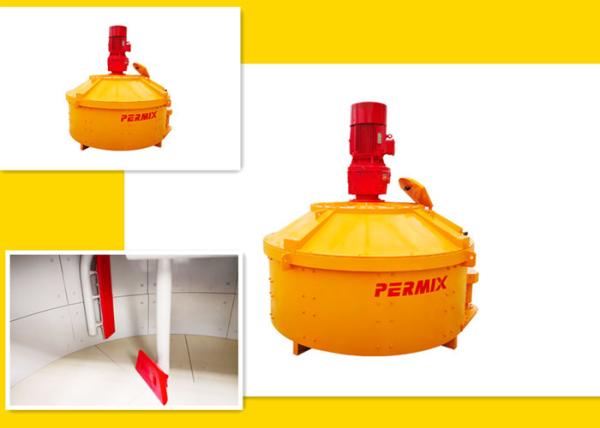

PCCP Water Pipe Stationary Concrete Mixer , Low Noise Vertical Shaft Mortar Mixer

QINGDAO PERMIX MACHINERY CO., LTD
Contact Now
    Buy cheap PCCP Water Pipe Stationary Concrete Mixer , Low Noise Vertical Shaft Mortar Mixer from wholesalers

    Buy cheap PCCP Water Pipe Stationary Concrete Mixer , Low Noise Vertical Shaft Mortar Mixer from wholesalers
    • Buy cheap PCCP Water Pipe Stationary Concrete Mixer , Low Noise Vertical Shaft Mortar Mixer from wholesalers

    PCCP Water Pipe Stationary Concrete Mixer , Low Noise Vertical Shaft Mortar Mixer

    Ask Lasest Price
    Brand Name : PERMIX
    Model Number : PMC750
    Certification : CE
    Price : Negotiation
    Supply Ability : 5-10 units per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    PCCP Water Pipe Stationary Concrete Mixer , Low Noise Vertical Shaft Mortar Mixer

    Low Energy Consumption Planetary Cement Mixer Low Noise PMC750


    Mixer advantages


    The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.


    APPLICATION INDUSTRIES


    1. Concrete

    Precast concrete: various block bricks, sleepers, track slabs, metro tunnel segments, PC components, PCCP water pipe,

    Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,

    High Performance ready-mixed concrete: Self-leveling mortar, etc.

    2. Ceramics,

    3. Pot Clay,

    4. Glass Raw Material,

    5. Refractories: Unshaped refractories, refractory bricks,

    6. Casting materials: Sand mixing, casting coatings,

    Others


    The characteristics of the planetary mixer


    The planetary mixer is a new type of high efficient mixed mixing equipment without dead point. It has a unique mixing form. When the planet frame rotates, the two stirring axes in the driving box revolve around the barrel, and the mixing shaft runs at a high speed, so that the material is subjected to a strong shearing effect and the effect of full dispersion and mixing is achieved. The shaving cutter in the external equipment rotates around the axis of the cylinder, scraping the material on the wall and participating in the mixed shear, so that there is no residual material in the wall, and the mixing effect is more ideal. The cylinder body uses a special sealing structure, which can be pressurized or vacuum stirred, and has good defoaming effect. The cylinder can be designed according to the needs of the customer. For heating or cooling, the cylinder cover is hydraulic lifting, convenient for operation and cleaning, and the barrel can move freely.


    Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.



    Technical Data
     PMC50

    PMC

    100

    PMC

    150

    PMC

    250

    PMC

    330

    PMC

    500

    PMC

    750

    PMC

    1000

    PMC

    1500

    PMC

    2000

    PMC

    2500

    PMC

    3000

    PMC

    4000

    PMC

    4500

    Output capacity(L)501001502503305007501000150020002500300040004500
    Input capacity(L)75 22537550075011251500225030003750450060006750
    Input capacity(kg)120 3606008001200180024003600480060007200960010800
    Diameter of Mixing Tank(mm)   130015401900219224962796310034003400
    Mixing Power kw37.5111518.5223037557590110160200
    Blade QTY1/21*21*21*21*21*21*32*22*23*23/63/93/93/9
    Side Scraper QTY11111111111111
    Bottom Scraper QTY11111111112222
    Weight(kg)700 1000120017002000350060007000850010500110001600018000
