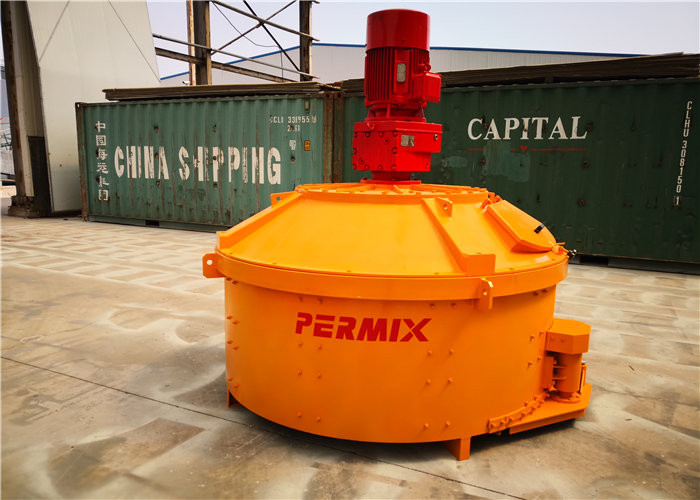

Counter-flowing Current Planetary Cement Mixer High Efficiency Of Mixing
The characteristics of the planetary mixer:
The planetary mixer is a new type of high efficient mixed mixing equipment without dead point. It has a unique mixing form. When the planet frame rotates, the two stirring axes in the driving box revolve around the barrel, and the mixing shaft runs at a high speed, so that the material is subjected to a strong shearing effect and the effect of full dispersion and mixing is achieved. The shaving cutter in the external equipment rotates around the axis of the cylinder, scraping the material on the wall and participating in the mixed shear, so that there is no residual material in the wall, and the mixing effect is more ideal. The cylinder body uses a special sealing structure, which can be pressurized or vacuum stirred, and has good defoaming effect. The cylinder can be designed according to the needs of the customer. For heating or cooling, the cylinder cover is hydraulic lifting, convenient for operation and cleaning, and the barrel can move freely.
Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) wear - resistant alloy plates.
(2) surfacing materials.
(3) high chrome alloy.
(4) stainless steel materials.
(5) ceramic materials
(6) polyurethane material.
(7) high wear resistant rubber and cast stone materials.
Water spray pipe
The special designed sprayer is installed on the water pipe. The spraying water cloud can cover more area and also make the mixing more homogeneous.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
