QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
8 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC500 |
| Certification : | CE |
| Price : | Negotiation |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 5-8 days |

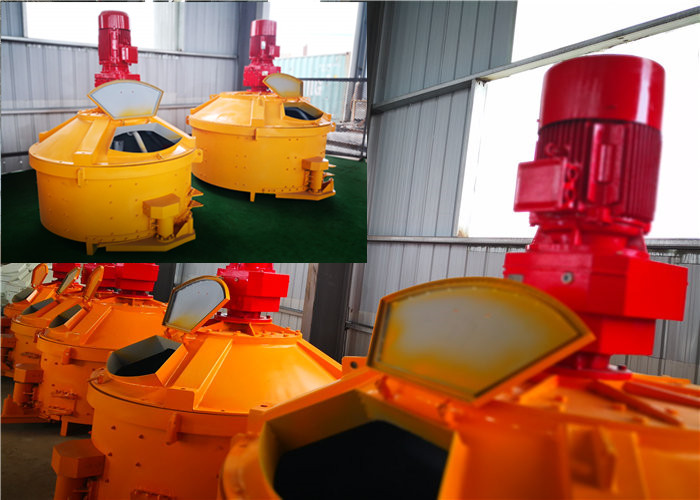

High Efficiency Of Mixing Precast Concrete Mixer 1-3 Unloading DoorsPMC500
Operation Instruction
The instruction must be followed during operation
1. Do not run over loaded
2. Discharge material in the trough after an emergency stops. Start with load is forbidden;
3. After each shift, clean the trough, tools, check the tightness of nuts, and open and close the discharging door Several times to ensure it works smoothly,
Check the blades and tiles weekly and replace them if necessary;
4. The anti-wear parts made by our company must be used to avoid any damage to the machine;
5. Stay away from the discharging area to avoid any injury to workers.
Mixer advantages
The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.
The Skip Hopper
Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 80 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
