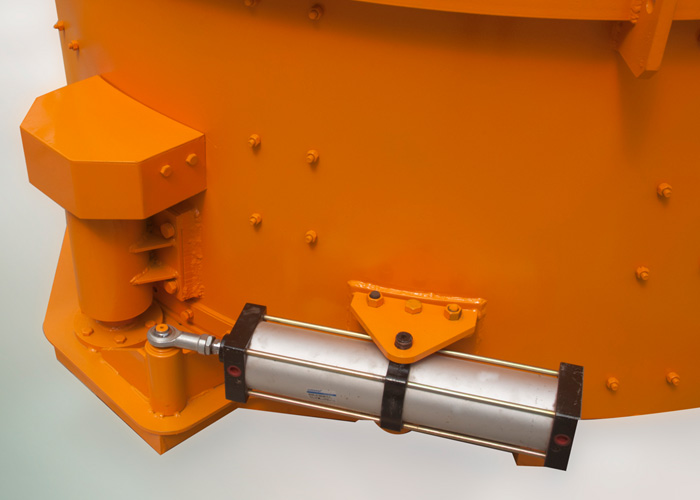

Replaceable Mixing Blades Precast Concrete Mixer Minimum Maintenance PMC4000
The performance characteristics of Mixer
1. Reasonable design and performance optimization of the whole machine
2. Convenient use and maintenance;
3. Firm and reliable, life factory;
4. Good mixing quality and high efficiency
5. Convenient operation and fast discharging speed
6. Low energy consumption and low noise
The use of mixer
1. Before use, the machine should have an empty test. Before the test machine, the firmness of all the connecting parts of the machine table shall be checked first, especially if the bearing part is loose during transportation. Close the main switch, access the power supply, run the empty test machine.
2. Empty machine test. The mixer can only be put into production without abnormal sound, high heat of bearing gear, etc.
3. If abnormal vibrations or strange sounds are detected during use, stop the mixer and give a thorough inspection.
4. The load should not be too large. It is generally measured by the load of the motor. The load current of the 380V motor when stirring the material should not exceed 6 amps. If it exceeds the load, the stirring capacity should be reduced immediately.
5. Managers should be familiar with the technical performance, internal structure, control structure, and operating principle of the mixer. Do not leave the workplace during operation to prevent malfunctions and damage to mechanical parts, so as to ensure safe production.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 80 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
