Brand Name : | PERMIX |
Model Number : | PMC1000 |
Certification : | CE |
Price : | Negotiation |
Supply Ability : | 5-10 units per month |
Delivery Time : | 15-18 days |

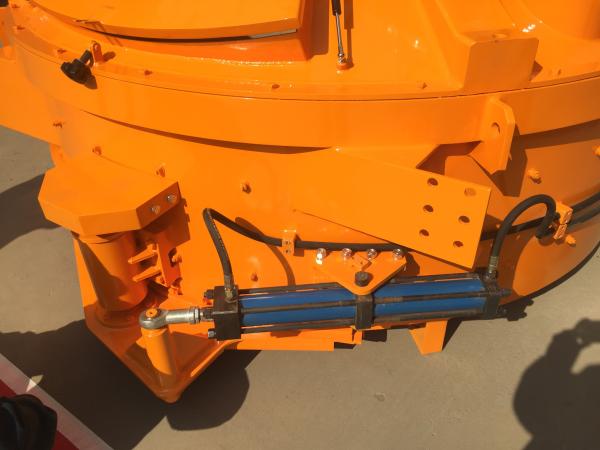

PMC1000 Planetary Concrete Mixer German Technology CE Certificate
Batch Mixer Auto
APPLICATION INDUSTRIES
1.Concrete
Precast concrete: various block bricks, sleepers, track slabs,
metro tunnel segments, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement
slurry,polyphenylene granule cement slurry, other lightweight
aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2.Ceramics,
3.Pot Clay,
4.Glass Raw Material,
5.Refractories: Unshaped refractories, refractory bricks,
6.Casting materials: Sand mixing, casting coatings,
Mixer advantages
The machine has the dual advantages of independent operation and
the simple concrete mixing plant combined with PLD series batching
machines. It can also provide matching hosts for the mixing
station. It is suitable for all kinds of large, medium and small
prefabricated component plants and highways and bridges. Water
conservancy, docks and other industrial and civil construction
projects are ideal for the host of concrete mixing plants. The
product design structure is reasonable, the layout is novel, and it
is easy to use and maintain. Users can use dump trucks and mixer
trucks for their own use. At the same time, they can also be
restructured according to the special requirements of users to meet
their needs
Principle of Motion: Mixing with no hidden corners in the mixing
pan by installing mixing tools and scraper tools on a specially
designed drive system.
The mixing track as follows.
>
Technical Specification | ||||||||||||||
ITEM/(PMC) | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC | PMC 4000 |
Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
Dimension (L*W*H) mm | 950* | 1664* | 1670* | 1860* | 1870* | 2230* | 2580* | 2891* | 3058* | 3223* | 3625* | 3893* | 3893* | 4594* |
![]() |
