Replaceable Mixing Blades High Efficiency Planetary Mixer PMC1500 Polyurethane Material

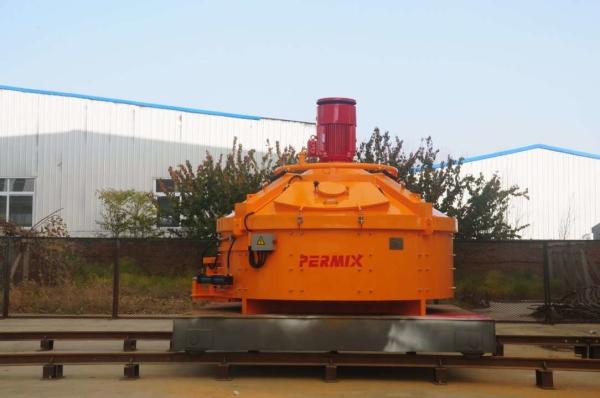

High Efficiency Concrete Mixer PMC1500 Cement Planetary Precast Raw chemical material
Performance Characteristics:
Low Energy Consumption
High Homogenization
Short Mixing Time
Simple Structure, Simple and Convenient Maintenance
APPLICATION INDUSTRIES
1. Concrete
Precast concrete: various block bricks, sleepers, track slabs, metro tunnel segments, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2. Ceramics,
3. Pot Clay,
4. Glass Raw Material,
5. Refractories: Unshaped refractories, refractory bricks,
6. Casting materials: Sand mixing, casting coatings,
Others
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
Water spray pipe
The special designed sprayer is installed on the water pipe. The spraying water cloud can cover more area and also make the mixing more homogeneous.
The Skip Hopper
Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
