QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
8 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC750 |
| Certification : | CE |
| Price : | Negotiation |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 5-8 days |

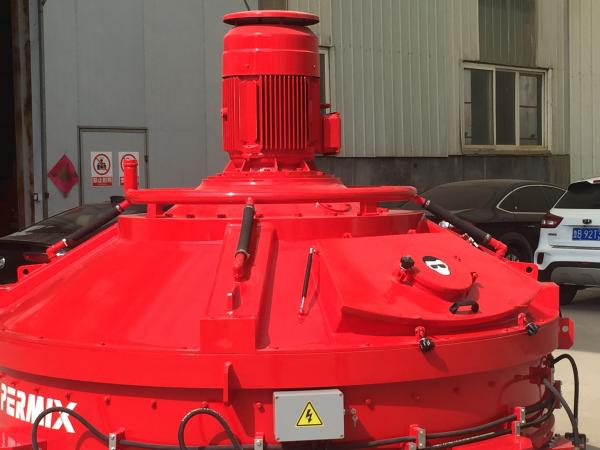

Refractory Mixer Heavy Duty PMC750 Slabs Concrete Batch Mixing Ceramic Marble Mix
Mixer advantages
The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.
Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) stainless steel materials.
(2) polyurethane material.
(3) high chrome alloy.
(4) wear - resistant alloy plates.
(5) ceramic materials
(6)surfacing materials.
(7) high wear resistant rubber and cast stone materials.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
|
|
