QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
8 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC750 |
| Certification : | CE |
| Price : | Negotiation |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 15-18 days |
| Concrete | Other Construction Material | Refractory Material | Others |
| Ready-mixed concrete Precast concrete Foam concrete Color concrete Light concrete Shotcrete | Dry mortar Wet mortar Gypsum Aggregate mixing Emulsified asphalt Cement adhesive | Shaped refractory material Unshaped refractory material | Glass Fertilizer Waste treatment Mine backfill |
Product advantage and description

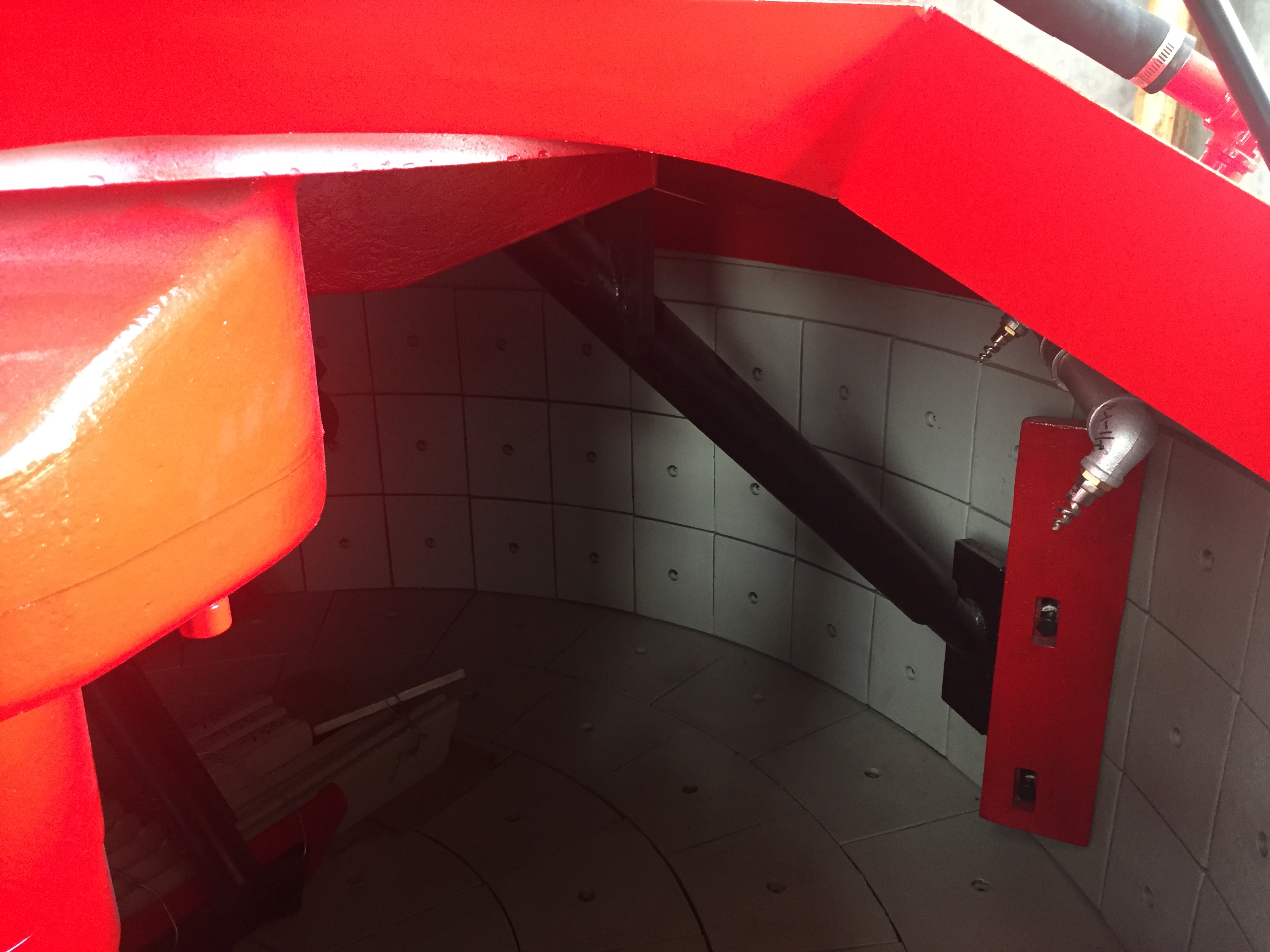

Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on. It can mix aggregate, gravel, gravel, dry concrete, plastic concrete, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed. The pneumatic piston push rod is used to discharge the motor automatically when discharging.
The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharging speed, long service life of lining plate and blade, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar.
Transmission System
The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation. The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.
The mixing track as follows.Principle of Motion: Mixing with no
hidden corners in the mixing pan by installing mixing tools and
scraper tools on a specially designed drive system.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1250 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 | 1664* 1453* 1487 | 1670* 1460* 1620 | 1860* 1650* 1780 | 1870* 1870* 1855 | 2230* 2080* 1880 | 2580* 2340* 2195 | 2891* 2602* 2237 | 3058* 2756* 2395 | 3223* 2902* 2470 | 3625* 3230* 2695 | 3893* 3550* 2875 | 3893* 3550* 3085 | 4594* 4150* 3634 |
|
|
