QINGDAO PERMIX MACHINERY CO., LTD FOCUSING ON MATERIAL MIXING!
8 Years
| Ask Lasest Price | |
| Brand Name : | PERMIX |
| Model Number : | PMC750 |
| Certification : | CE |
| Price : | Negotiation |
| Supply Ability : | 5-10 units per month |
| Delivery Time : | 5-8 days |

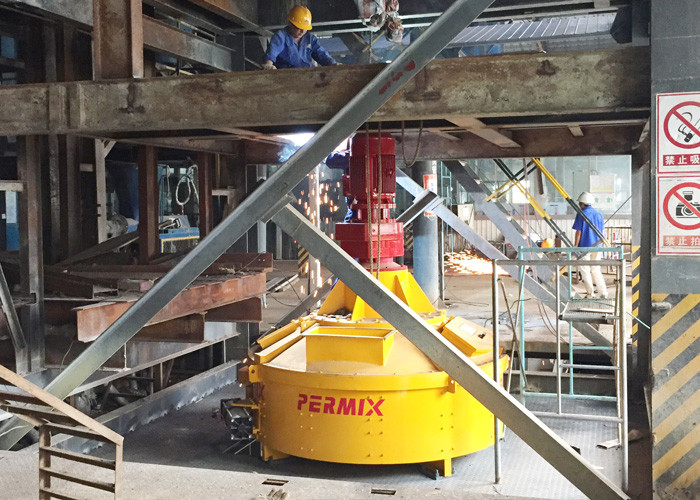

Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect. In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal. Cylinder with special seal structure and have the pressure or vacuum stirring. Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.
| Concrete | Other Construction Material | Refractory Material | Others |
| Ready-mixed concrete Precast concrete Foam concrete Color concrete Light concrete Shotcrete | Dry mortar Wet mortar Gypsum Aggregate mixing Emulsified asphalt Cement adhesive | Shaped refractory material Unshaped refractory material | Glass Fertilizer Waste treatment Mine backfill |
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 | PMC 4500 | |
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows:
|
|
